ZONESTAR

5 PCS Nema17 Stepper Motor 1.8 degree 2 phase 4 Wire Height 22 34 40mm With Cable

5 PCS Nema17 Stepper Motor 1.8 degree 2 phase 4 Wire Height 22 34 40mm With Cable

Prezzo di listino $49.00 USD
Prezzo di listino $59.00 USD Prezzo scontato $49.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
尺寸

Name:                            NEMA 17 Stepping Motor
Number of phase:        2
Inductance resistance: 100MΩmin (500V)
Port of wires:                6 pins female PH2.0
Step Angle:                    1.8°
Number of Lead wire :    4

Insulation class:            Class B (130°)



OPTION

W(mm)

X(mm)

Y(mm)

L(mm)

Rated Current(@12V)

Detent torque

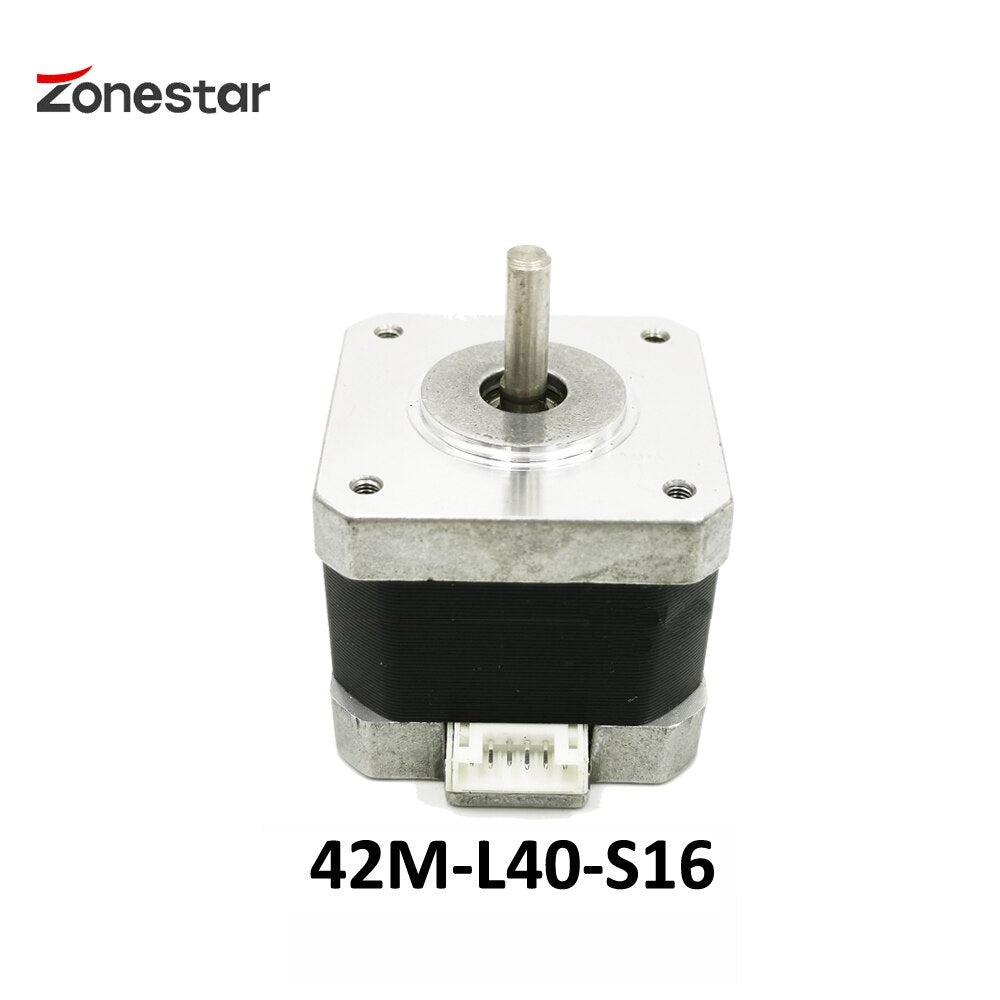

42M-L40-S16

42

2

16

40

1.5A

2.6kgf.cm

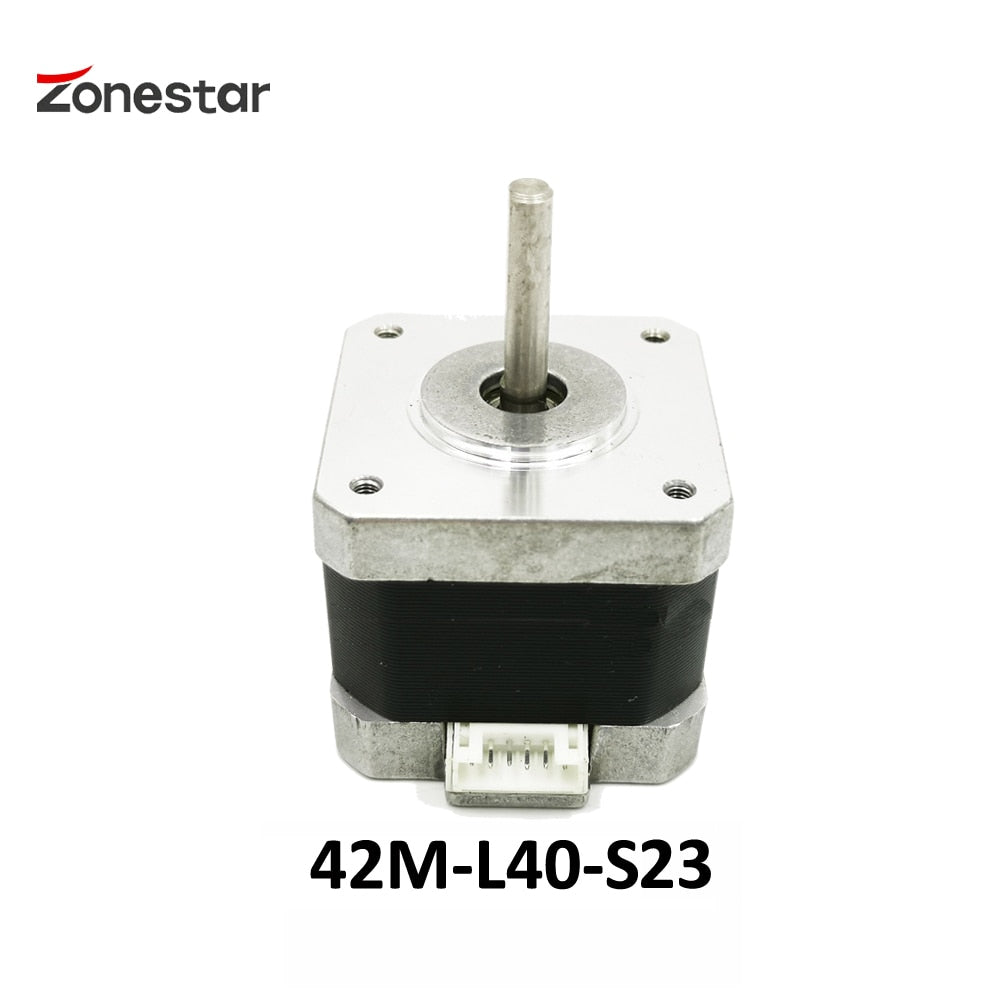

42M-L40-S23

42

2

23

40

1.5A

2.6kgf.cm

42M-L34-S16

42

2

16

34

1.2A

1.6kgf.cm

42M-L34-S23

42

2

23

34

1.2A

1.6kgf.cm

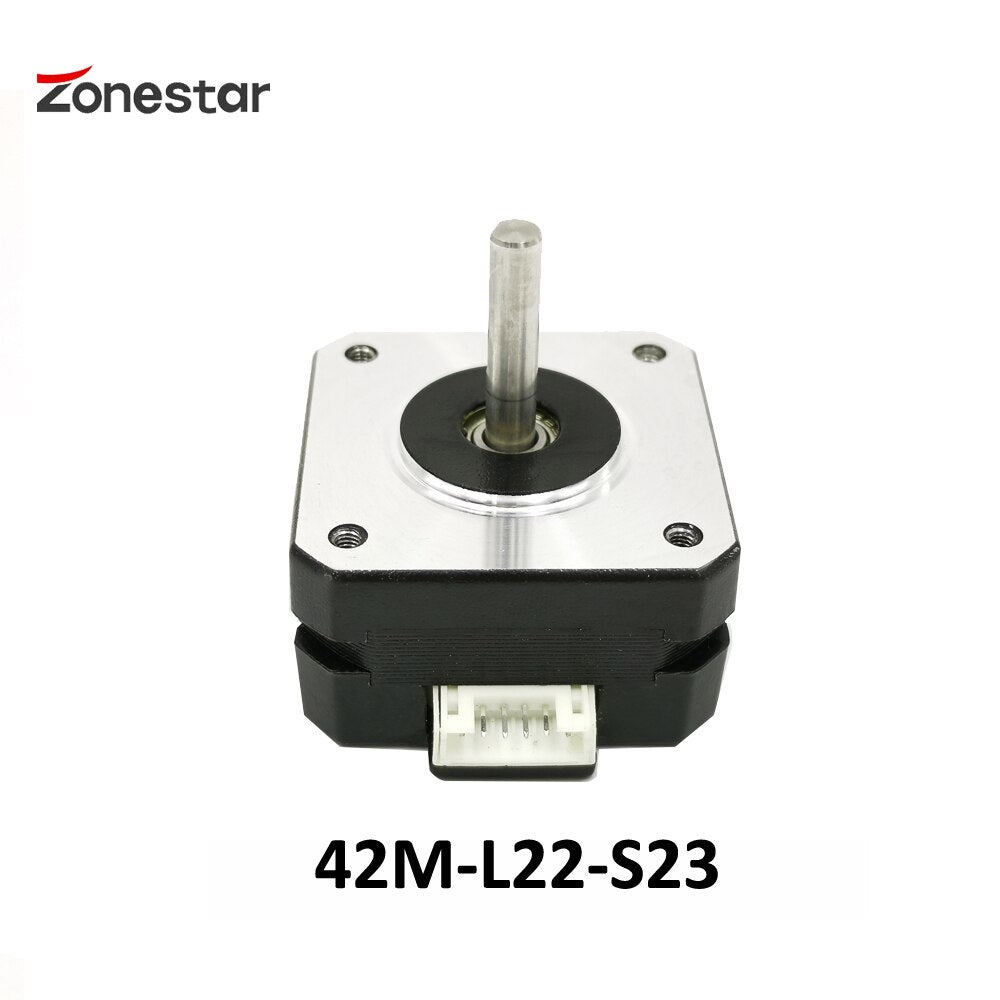

42M-L22-S23

42

2

23

22

1.0A

1.2kgf.cm

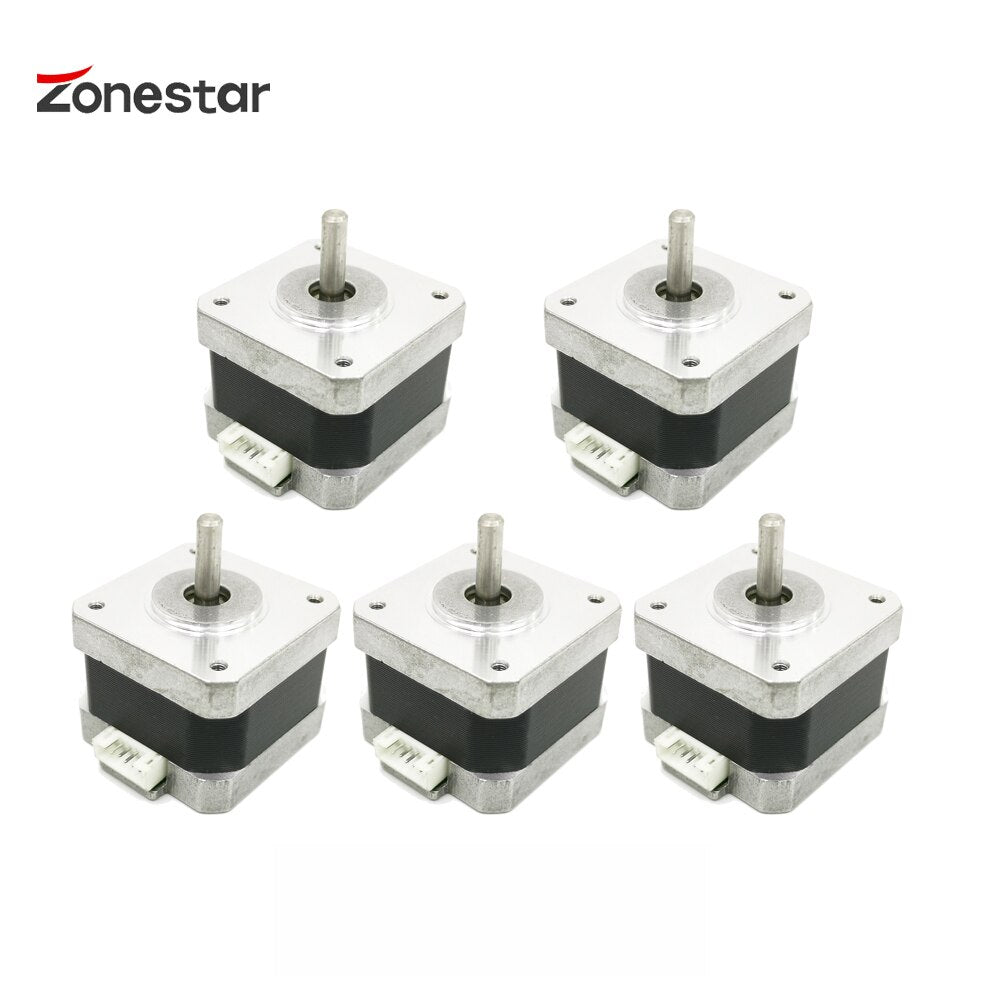

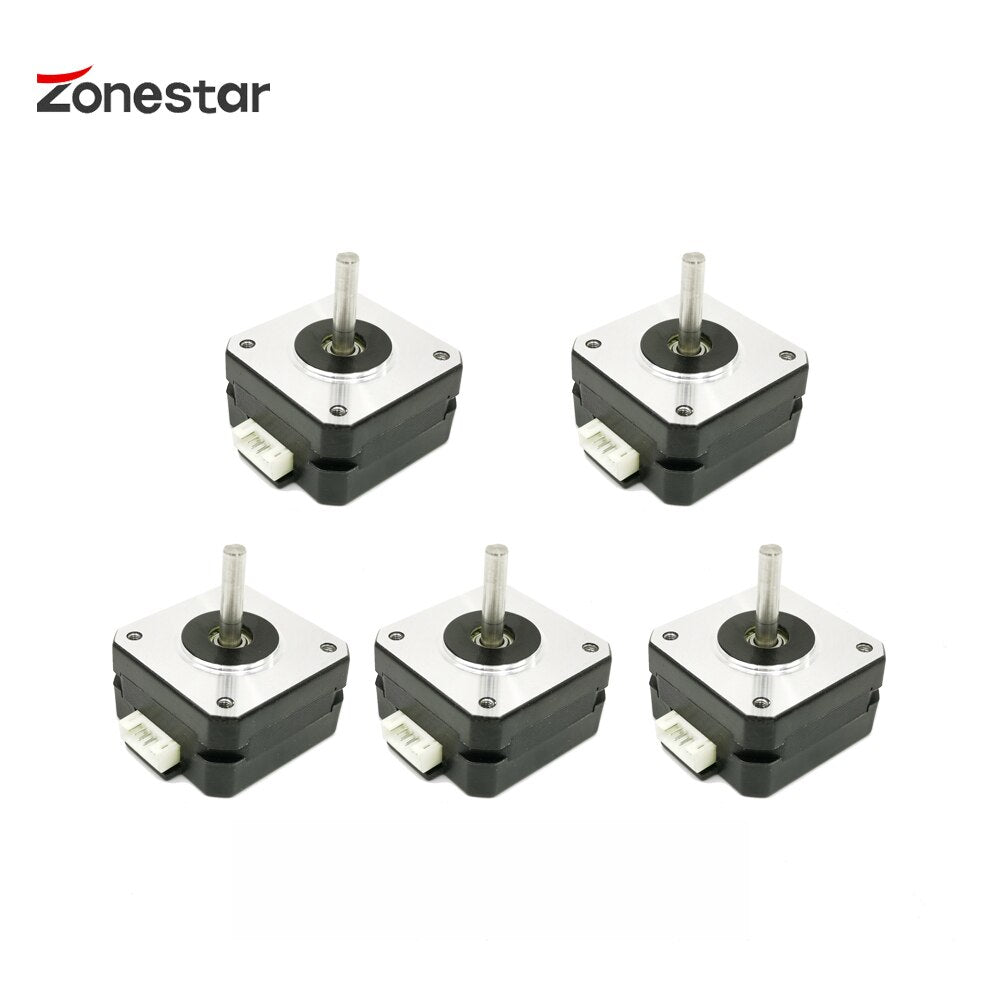

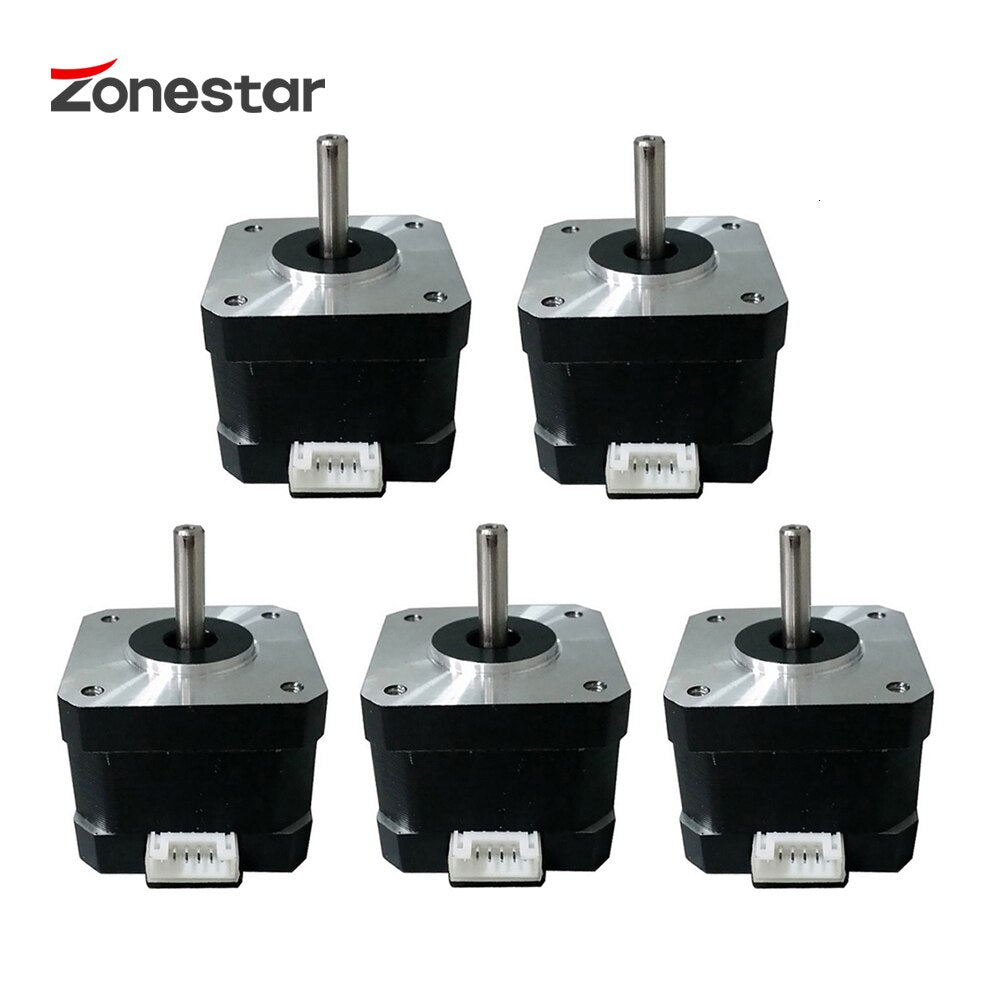

1.  5x Nema17 Stepping Motors

2.  5x Motor wire (*)

* Motor Wire:

Length: 1 meter

Connector: XH-4Pin to control board, PH-6Pin to motor
