ZONESTAR

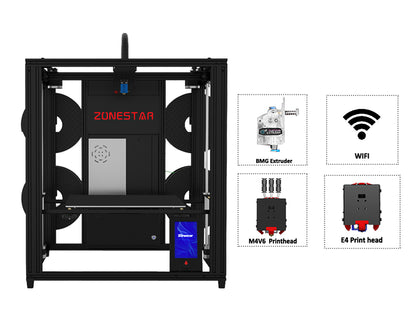

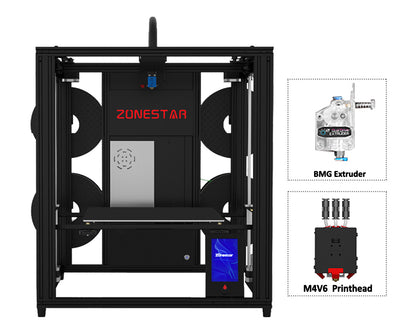

New Arrival 4 Extruders Multi Color Enclose Frame CoreXY Fast Printing Silent Large FDM 3D Printer DIY Kit Z9V5Pro-MK6

New Arrival 4 Extruders Multi Color Enclose Frame CoreXY Fast Printing Silent Large FDM 3D Printer DIY Kit Z9V5Pro-MK6

Prezzo di listino $579.00 USD
Prezzo di listino $849.00 USD Prezzo scontato $579.00 USD
In offerta Esaurito
Spese di spedizione calcolate al check-out.
Title

ATTENTION PLEASE:

If you choosed the option with WiFi module, you need to install the WiFi module to the control board by yourself. About how to install the WiFi module, please refer to the guide at this link:

https://github.com/ZONESTAR3D/Upgrade-kit-guide/tree/main/WiFi

Features:

  • Support multi color 3d printing.
  • Support to print one color 3d model into multi color.
  • Built-in automatic color mixing engine, one-button to realize gradient and random mixing printing .
  • 95% pre-assembled, fast installation.
  • Ultra silent, working noise is less than 55db.
  • High performance 32-bit control board.
  • 3.5" Full color TFT-LCD screen.
  • Equiped with 4 extruders and mixing color hotend, ability to print 16 colors 3d model.
  • Auto resume printing after powe failure.
  • Bed auto leveling.
  • Filament run out detect.
  • Auto power off after printed.
  • Mutil language menu (EN/ES/PT/FR/RU).
  • Open source firmware.

Specifications:

  • Maximus Printing Size: 300*300*400mm
  • Standard Nozzle Diameter: 0.4MM
  • Layer Thickness: 0.1~0.36MM
  • Positioning Accuracy(X&y): Z:0.25um X/Y:0.012mm
  • Extruder Number: 4
  • Hotend type: 4-IN-1-OUT non-mix color hotend
  • Printing Speed: 20-100mm/s
  • LCD Screen: 480x272 dot TFT-LCD
  • Power of heatbed: 24V 350W
  • Recommended Host App: Cura / Repetier-Host
  • Operating System: Windows/mac
  • Date Import Format*: gcode/STL/AML/OBJ,etc.
  • Menu Language: English/France/Russian/Spanish/Portuguese.
  • AC Power Supply: 110V/220V,50/60HZ
  • Printing Material Support: PLA/PLA+/PVA/PETG,etc.
  • Product Size: 56*56*56cm / 22*22*22in
  • Product Weight: 16kg / 35lbs
  • Package Size: 62*59*21cm / 24.4*23.2*8.3in
  • Package Weight: 17.2KG/38lbs

* About the different between M4 and E4 hotend, please refer to this link:

https://github.com/ZONESTAR3D/Upgrade-kit-guide/tree/main/HOTEND#file_folder-faq-for-e4-and-m4-hotend

User Guide:

We put the user guide in SD card shipped with the 3d printer kit, you can also read the online documents from this link:  https://github.com/ZONESTAR3D/Z9/tree/main/Z9V5/Z9V5-MK6
