ZONESTAR

ZONESTAR Multi Color 4-IN-1-OUT Non Mix Color E4 Hotend Extruder Print head 3D Printer Parts

ZONESTAR Multi Color 4-IN-1-OUT Non Mix Color E4 Hotend Extruder Print head 3D Printer Parts

Precio habitual $44.90 USD
Precio habitual $69.00 USD Precio de oferta $44.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Option

Introduction

This item is a non-mix color hotend for ZONESTAR muti extruders 3d printers, the size and installation are fully compatible with the Z8 and Z9 series multi colors 3d printers, it can be easily installed on the X carrier of these products. After upgrading this item, the machine will be greatly improved when printing multi colors prints. The main advantages are:

  • Completely eliminated drawing/strings issue of the mixing color hotend.
  • Less clogging issue while printing multi colors prints.
  • Smaller "extruder switch prime tower" or "prime" inneed while printing multi colors.

    Option

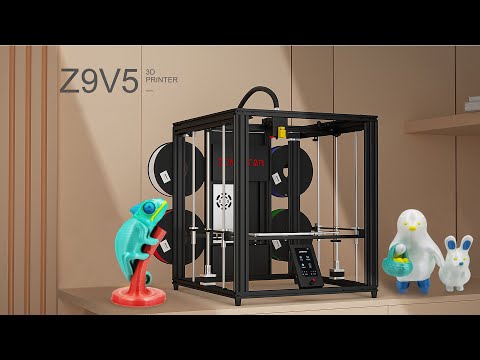

    E4 Hotend    Applied to Z9V5-MK2/MK3/MK4 Z8PM4-MK2
    E4 Hotend w/ Extend Cable    Applied to Z9V5-MK1, Z9M4, Z8P, etc.

    Feature

    • Support printing 1 ~ 4 colors 3d prints.
    • Faster color switching.
    • Support higher printing temperature (up to 260 degrees)
    • Support PLA, PLA+, PETG, ABS, Wood, Carbon fibre,PVA, HIPS, etc. filament
    • Support printing different types of filament to one 3d object.
    • Easy to plug and replace filament guide tube.
    • Perfect solution to overflow problem, no string issue.
    • Easy to replace nozzle.
    • With hotend insulation, printing temperature is more stable.
    • Installation size fully compatible with ZONESTAR M3 and M4 print head.

    Specifications

    • Working Voltage:           DC 24V
    • Heater Power:                 50W+-10%
    • Temperature Sensor:      NTC Thermistor 100K B3950
    • Filament Diameter:        1.75mm
    • Nozzle Size(default):     0.4mm
    • Nozzle Type:                    E3D-V6 Or compatible
    • Working Temperature: Max 260℃
    • FANs:                                1x extruder FAN + 1x cooler FAN

    User Guide

    Please click the link to view the user guide: https://github.com/ZONESTAR3D/Upgrade-kit-guide/tree/main/HOTEND/E4%204-IN-1-OUT%20Non-Mixing%20Color%20Hotend/User_guide

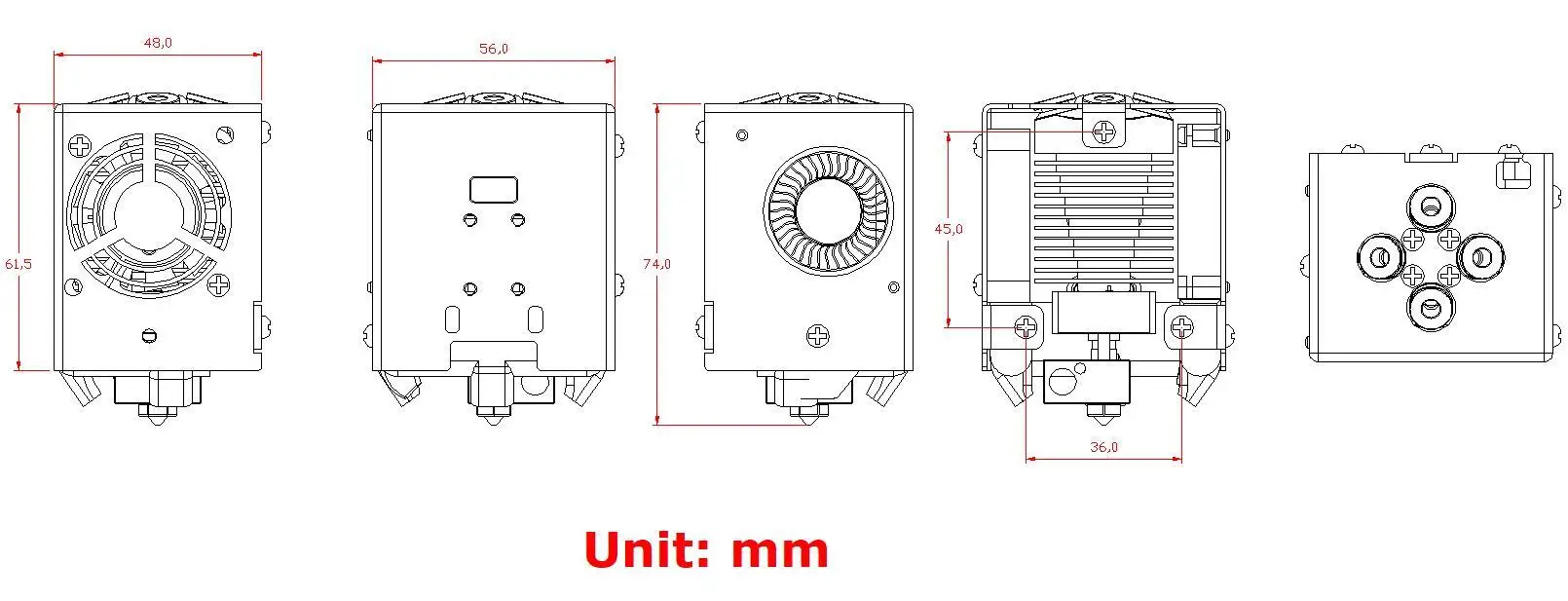

     Dimensions
